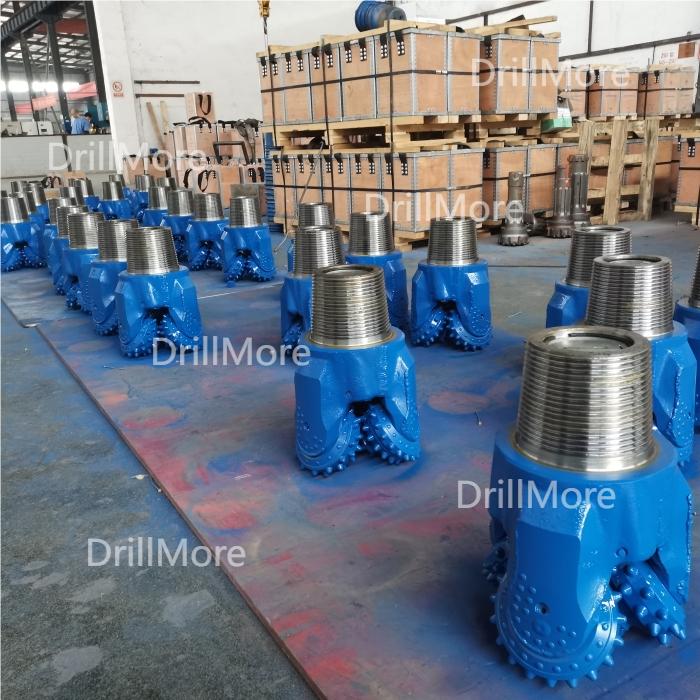

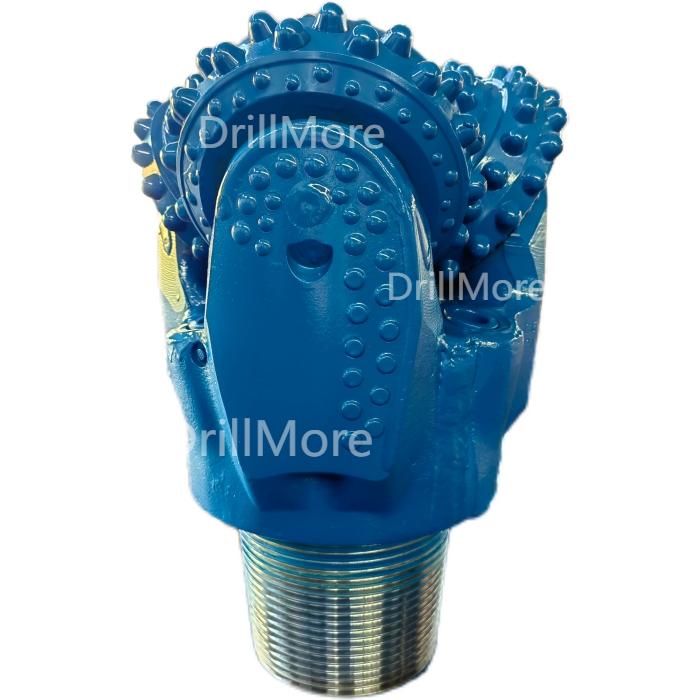

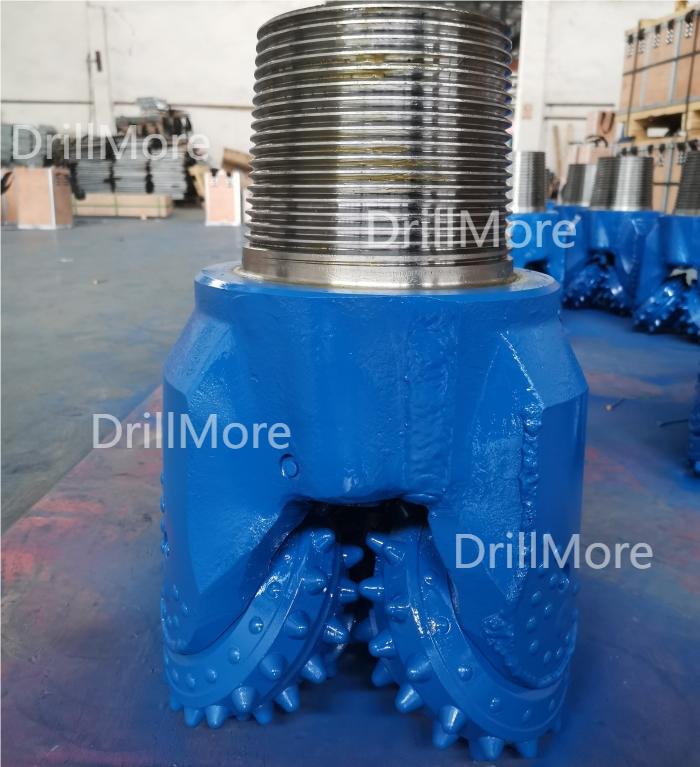

API Factory Tricone Bit 9" IADC635 For Mining Blast Hole Drilling
Tricone Bit For Mining
  • API Factory Tricone Bit 9
  • API Factory Tricone Bit 9
  • API Factory Tricone Bit 9
API Factory Tricone Bit 9" IADC635 For Mining Blast Hole Drilling
API Factory Tricone Bit 9" IADC635 For Mining Blast Hole Drilling is designed for medium hard and abrasive formation with high compressive strengths such as limestone, sandstone, dolomite, and chert.

Application: Mining, Construction, Quarry
Production Process:Forging
OEM Service: Yes
MOQ: 1 set
description

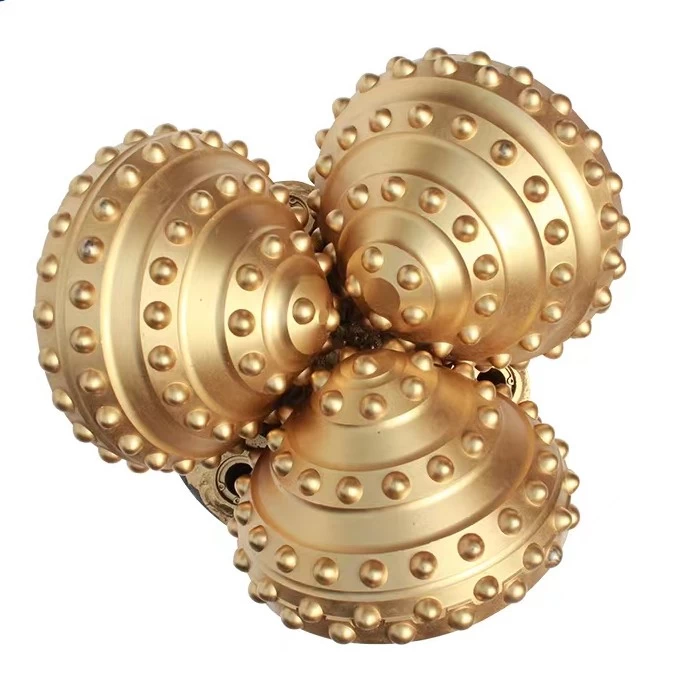

API Factory Tricone Bit 9" IADC635 For Mining Blast Hole Drilling

The tricone bit is a common drilling bit with a wide range of uses and high mechanical drilling speed.

It is a bit body consisting of three roller cones assembled and welded together and fitted with a connecting screw.

The teeth of a tricone drill bit can be adapted to various types of formations by choosing different designs and types of bearing  according to the hardness of the formation.

API Factory Tricone Bit 9" IADC635 For Mining Blast Hole Drilling is designed for medium hard and abrasive formation with high compressive strengths such as limestone, sandstone, dolomite, and chert.

API Factory Tricone Bit 9" IADC645 For Mining Blast Hole Drilling

Type:  9" IADC635
CUTTING STRUCTURE:
Gauge rows are ovoid  type and inner rows are conical  type.

Designed for medium hard and abrasive formation with high compressive strengths such as limestone, sandstone, dolomite,and chert.

Application: 29,000-38,000 PSI
SHIRTTAIL PROTECTION:
Hard metal on lug
Wear resistant carbide on the shirttail lip and lug.
OPERATING SUGGESTIONS:
Weight on Bit: 27000-54000 Lbs
Rotary Speed: 100-60 RPM
Air Back Pressure: 0.2-0.4 Mpa
PRODUCT SPECIFICATION:

IADC Code:

635
Bearing Type: Roller-Ball-Roller-Thrust Button/Sealed bearing
Circulation Type: JetAir
Cutting Structure:Inner and Nose rows: Conical
Gauge rows: Ovoid
Heel rows:round
Pin Connection: 4 1/2 API
Bit Diameter: 229 mm (9)
Product Weight:50KG (110Lbs)

What Advantage Of DrillMore's Tricone Bits?

1. Optimized cutting structure and bearing geometry to distribute load can make bit's performance smoother.

2. Sustained penetration rate over longer periods of time and reduced risk of bearing failure .

3. Higher penetration rate Less regrinding of cuttings to smaller pieces.

4. Full body armor with carbide insert minimizes wear on bit body and shirttail.

DrillMore's Best Service:

1. 365×24 Year-round Service,We are committed to year-round 24-hour service even during holidays.

2. Provide professional technical services, including products introduction, selecting and problem solution etc.

3. Large inventory of regular types, customized types can be delivered within 30 days.

How to Order?

1. Size of the bit diameter.

2. It is better if you can send the photo of the bits you are using.

3. IADC code you require, if no IADC code, then tell us the hardness of the formation.
