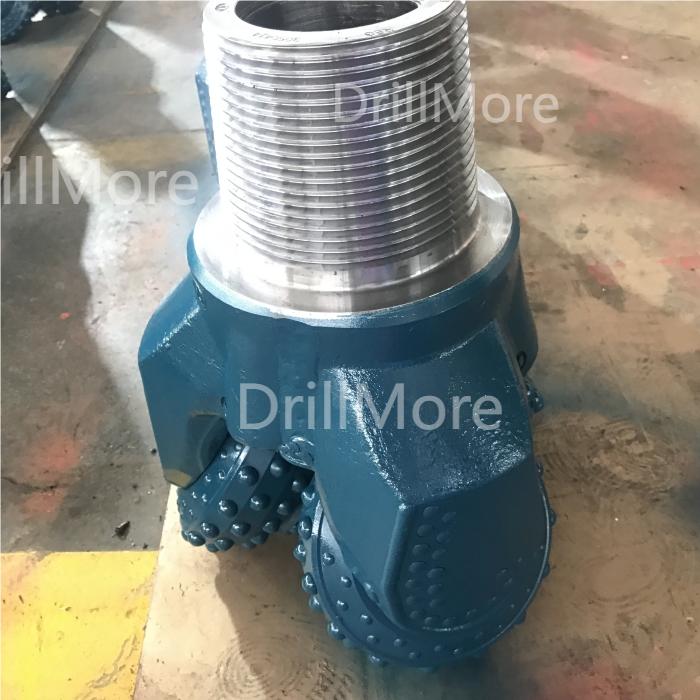

12 1/4" IADC 825 Jet Air Tricone Rock Bit
The tricone bit is a common drilling bit with a wide range of uses and high mechanical drilling speed.

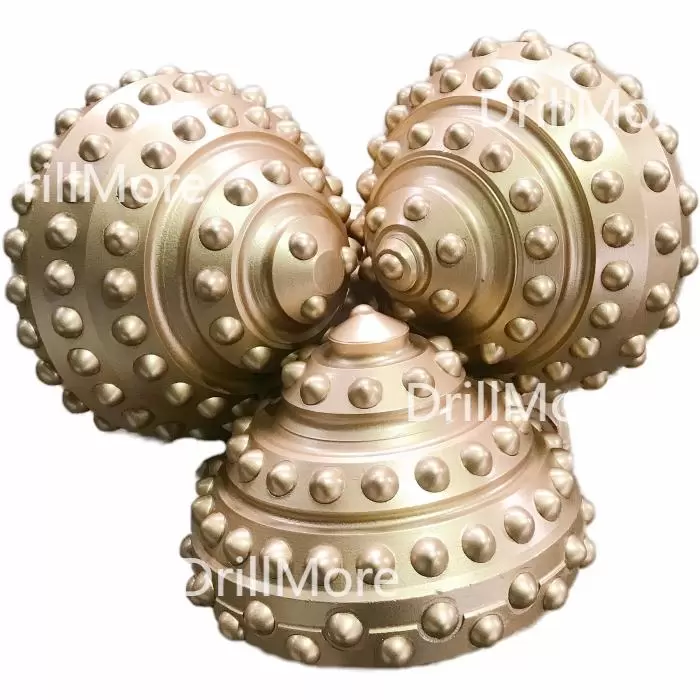

It is a bit body consisting of three roller cones assembled and welded together and fitted with a connecting screw.
The teeth of a tricone drill bit can be adapted to various types of formations by choosing different designs and types of bearing according to the hardness of the formation.
12 1/4" IADC 825 Jet Air Tricone Rock Bit designed for very hard and abrasive formations with high compressive strengths such as magnetite quartzite, quartzite, and granite.
| |||||||
Type: 12 1/4IADC825 | |||||||
CUTTING STRUCTURE: | |||||||
Gauge rows and inner rows are spheric types. | |||||||
Designed for very hard and abrasive formations with high compressive strengths such as magnetite quartzite, quartzite, and granite. | |||||||
Application: 58,000-70,000 PSI | |||||||
SHIRTTAIL PROTECTION: | |||||||
Hard metal on lug | |||||||
Wear resistant carbide on the shirttail lip and lug. | |||||||
OPERATING SUGGESTIONS: | |||||||
Weight on Bit: 61250-98000 Lbs | |||||||
Rotary Speed: 90-60 RPM | |||||||
Air Back Pressure: 0.2-0.4 Mpa | |||||||
PRODUCT SPECIFICATION: | |||||||
IADC Code: | 825 | ||||||
Bearing Type: | Roller-Ball-Roller-Thrust Button/Sealed bearing | ||||||
Circulation Type: | JetAir | ||||||
Cutting Structure: | Inner and Nose rows: Spheric | ||||||
Gauge rows: | Spheric | ||||||
Heel rows: | round Pin | ||||||
Pin Connection: | 6 5/8 API | ||||||
Bit Diameter: | 311mm (12 1/4) | ||||||
Product Weight: | 98KG (216Lbs) |
What Advantage Of DrillMore's Tricone Bits?
1. Optimized cutting structure and bearing geometry to distribute load can make bit's performance smoother.
2. Sustained penetration rate over longer periods of time and reduced risk of bearing failure .
3. Higher penetration rate Less regrinding of cuttings to smaller pieces.
4. Full body armor with carbide insert minimizes wear on bit body and shirttail.
DrillMore's Best Service:
1. 365×24 Year-round Service,We are committed to year-round 24-hour service even during holidays.
2. Provide professional technical services, including products introduction, selecting and problem solution etc.
3. Large inventory of regular types, customized types can be delivered within 30 days.
How to Order?
1. Size of the bit diameter.
2. It is better if you can send the photo of the bits you are using.
3. IADC code you require, if no IADC code, then tell us the hardness of the formation.
