Core Barrel With High Performance Rock Roller Bit
Core Barrel Roller Bit
  • Core Barrel With High Performance Rock Roller Bit
  • Core Barrel With High Performance Rock Roller Bit
  • Core Barrel With High Performance Rock Roller Bit
Core Barrel With High Performance Rock Roller Bit
Core Drill Barrels are a foundation drilling tool used for bored piles, struts, drilled shafts, and cassette pile construction. Roller Drill Core Barrels use high carbon steel and special bit angles to maintain drilling strength and efficiency.DrillMore has Roller Drill Core Barrels for different formations!

Application: piling, foundation, construction,Bored Piles Drilling, Coring Rock Shelves
Production Process:Forging
OEM Service: Yes
MOQ: 1 set
description

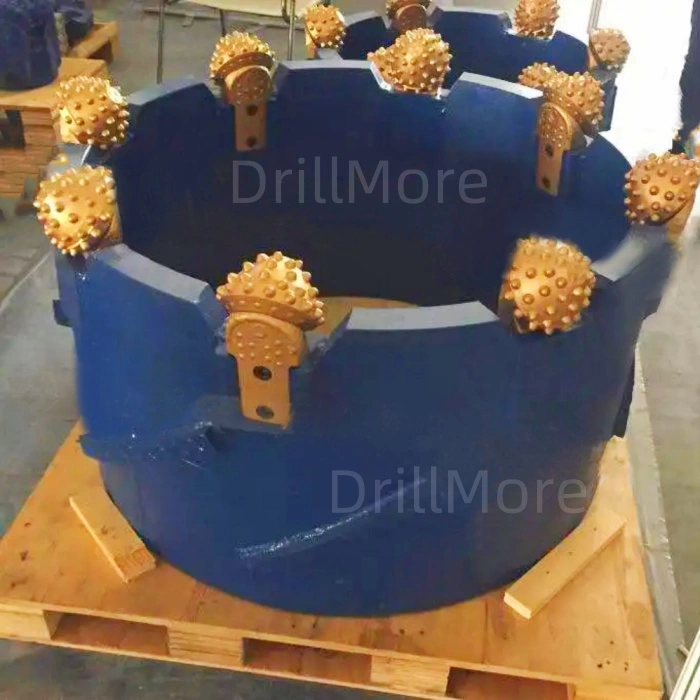

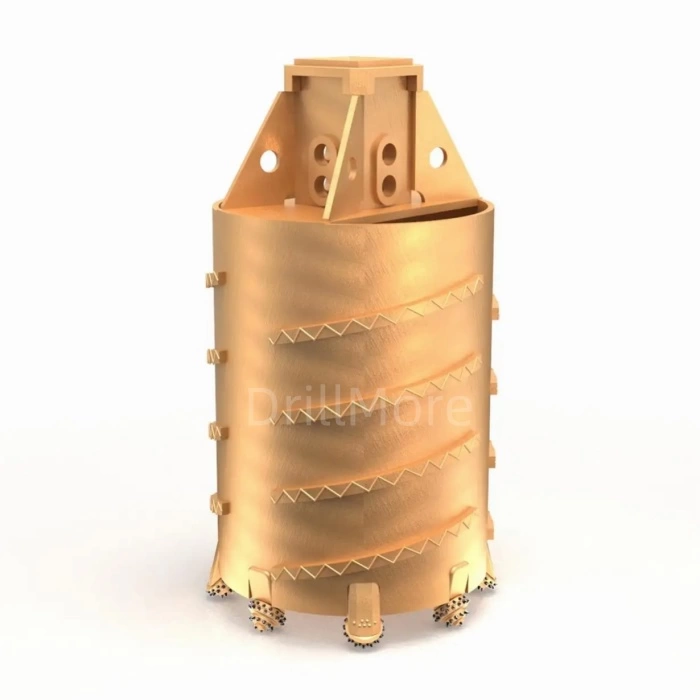

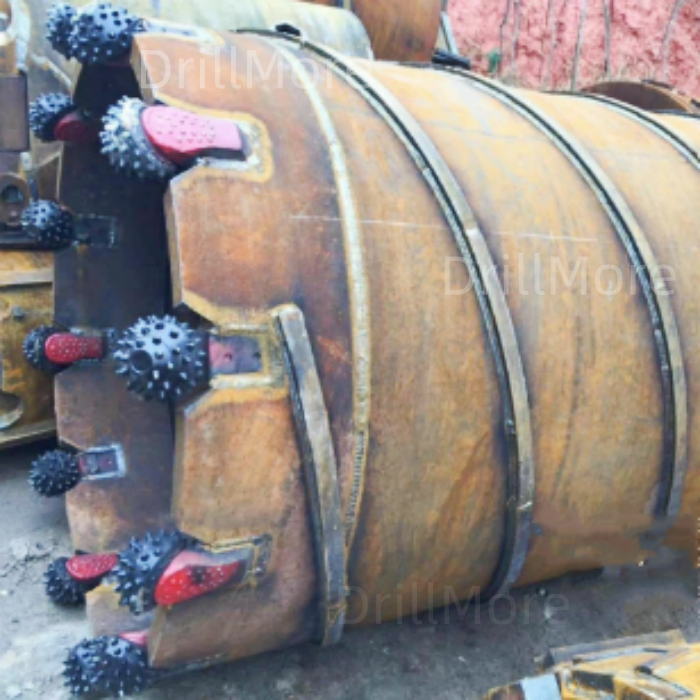

Core Barrel With High Performance Rock Roller Bit

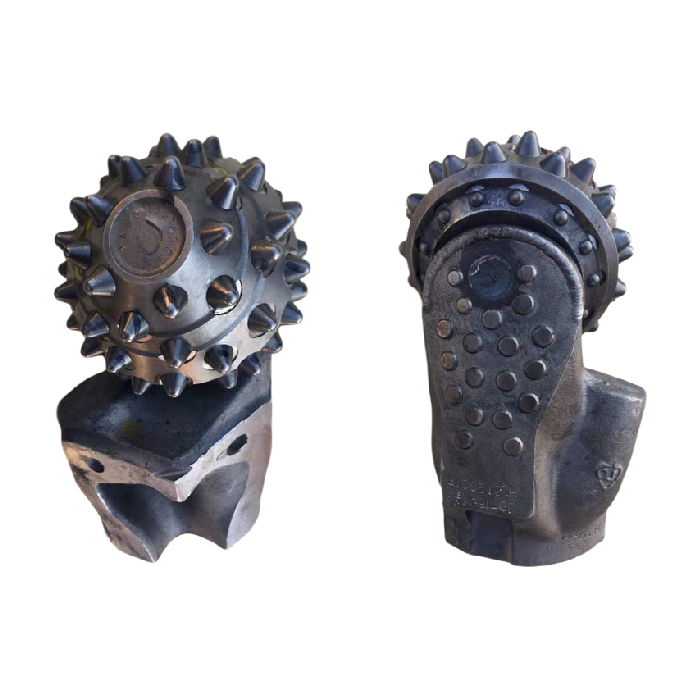

Roller bit is a kind of cut pick use in deep foundation drilling work, it usually installed in core barrel, suite for very hard rock layer drilling.

When you start a  foundation work such as bored pile, pillar, drill shaft,cassion pile work, the layer is very hard drilling use bullet teeth, roller bit will be a best option.

Unlike tricone bits that drill by a crushing action, the single cone bits drill by a scraping action. Thus, the single cone drill bits utilize wear resistant tungsten carbide inserts in the cutting structure.

The Tricone bit palm cutters installed on Hole Openers, Core Barrels to drilling water well, oil field, construction, geothermal, directional boring, and underground foundation, Crossing,  horizontal directional drilling.

1.Drilling with the method of rolling and squeezing can increases the anti-wear ability of the barrel;

2.Small barrel facilitates the coring operation,large barrel performs stage breaking

Specifictions:

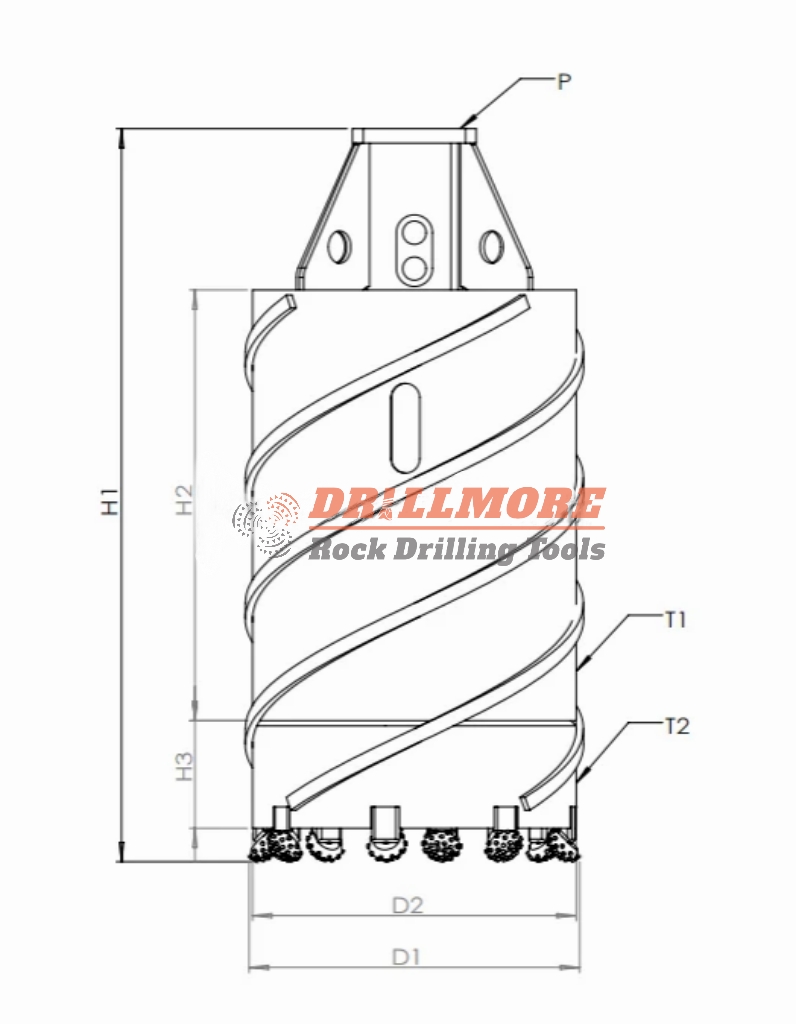

Core Barrel With High Performance Rock Roller Bit - 副本

Diameter

(mm)

Bucket height(H1)Height(H2)

Height(H3)

Bucket

Thickness(T1)

Base plate thickness(T2)

Maximum diameter

(D1)

Barrel

diameter

(D2)

500175010501503030480426
600175010501501640580520
800175010501501640780720
1000175010501501640980920
120017501050150164011801120
150017501050150164014801420
18001550850200204017801720
20001450700200204019801920
22001450700200254021802120
25001250500200254024802420
26001250500200305025802520
30001250500200305029802920

Why choose DrillMore and what are our advantages?

DrillMore's Roller Cone Bit is O type rubber sealed rolling bearing Roller Cone Bit, For high penetration rate drilling, it is an ideal and economical tool. It's main structural features:

1.Sealed rolling sliding bearing structure: on the main runway, the cylindrical roller is placed in the groove of the cone and the small runway use sliding wear resistant bushing, this enlarged the journal size. so it has the ability to withstand higher drilling pressure and adapt to high speed.

2.The surface of the thrust bearing pair is subjected to wear reduction treatment and hardening treatment, It improved the bearing capacity and bearing anti-bite ability.

3.A new type of grease that can withstand 250 degree of high temperature and wear resistance is adopted. It improved the high temperature resistance of the sealing lubrication system. At the same time, the optimized sealing structure is adopted to avoid the wear of the O-ring by the roller, and the life of the sealing ring is improved, thereby improving the service life of the roller bit.

4. Insert tricone bits adopts high strength and high toughness carbide teeth,which improves the impact resistance of the teeth and reduces the rate of tooth breakage.

5. Optimized design of the number of rows, teeth number, teeth expose height and unique alloy tooth profile, made the cutting ability and cutting speed of the tricone bits fully realized.

Related images:

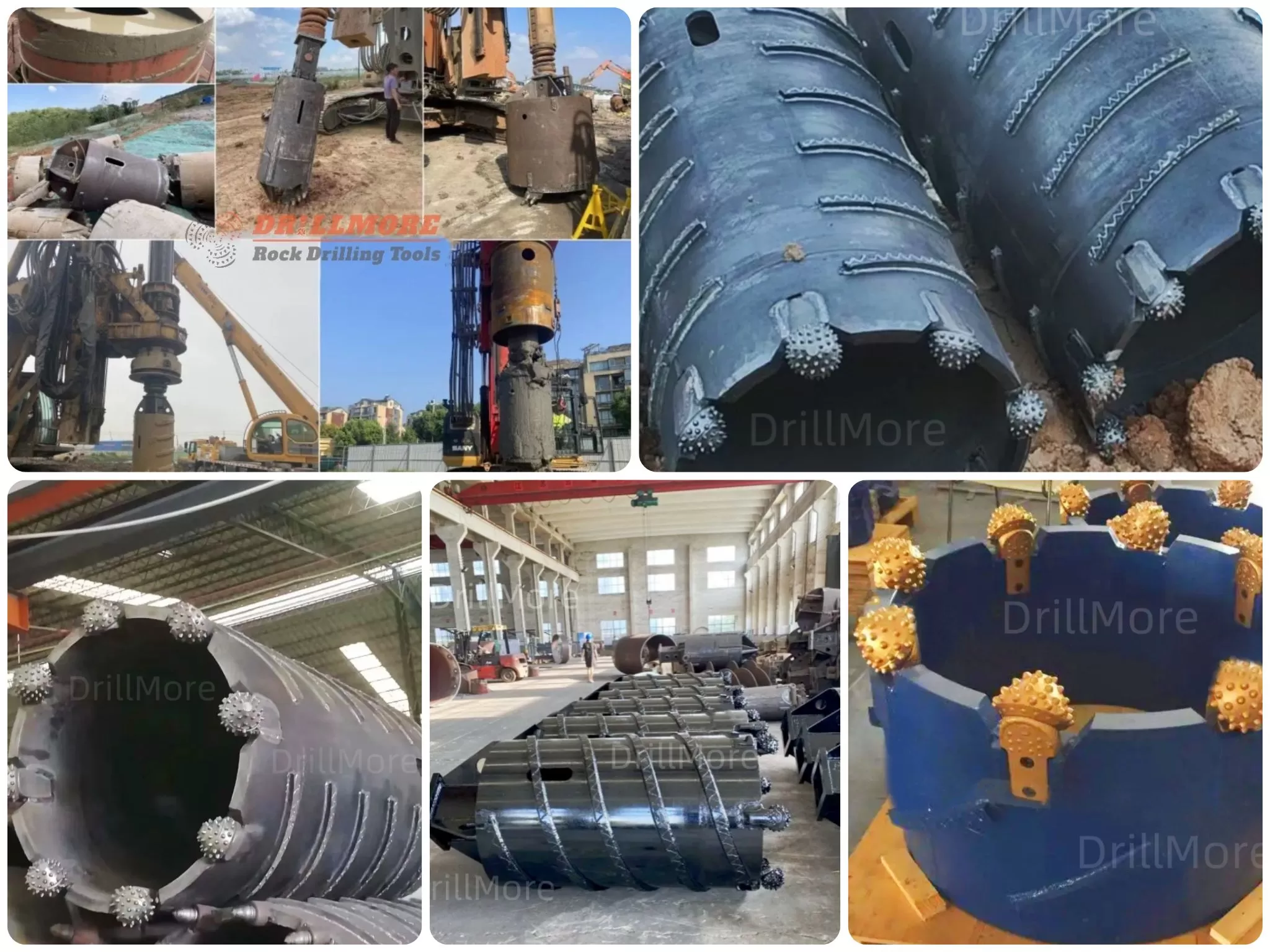

Core Barrel With High Performance Rock Roller Bit
