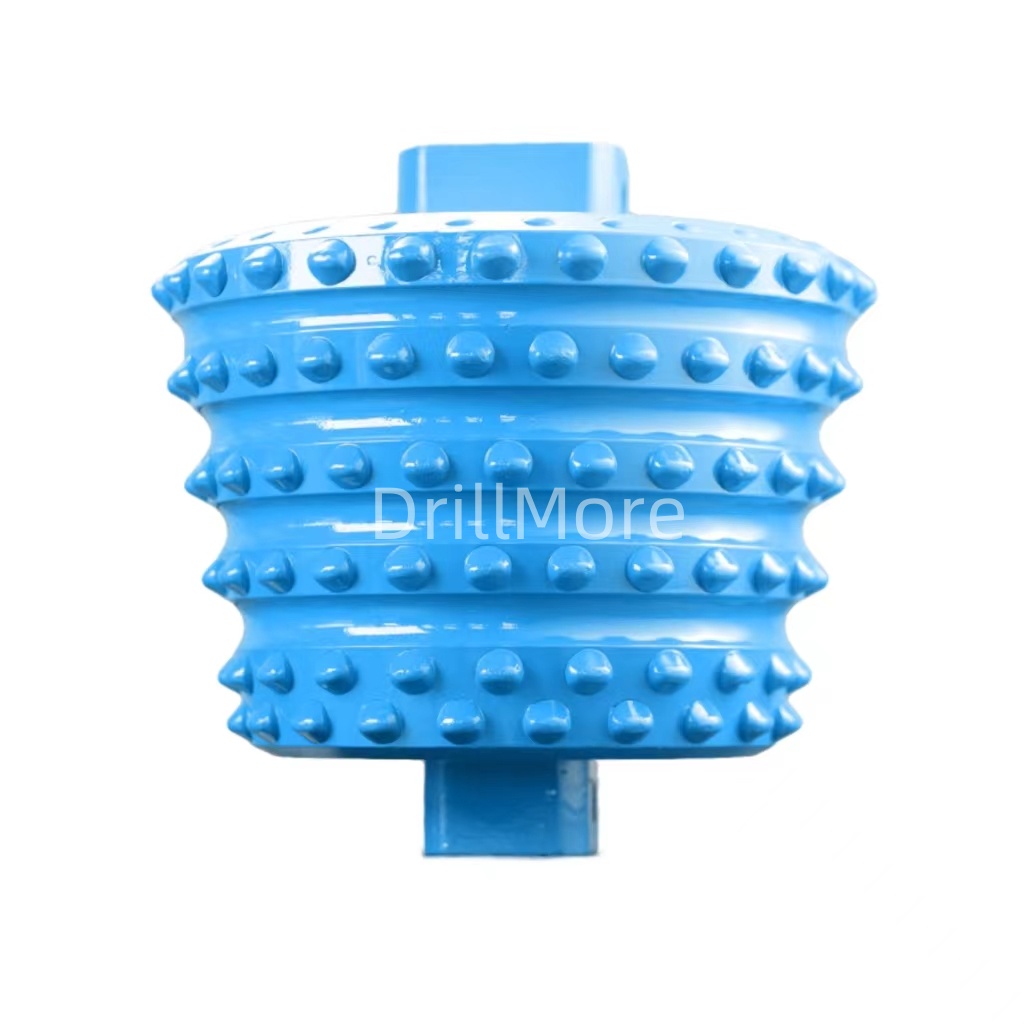

RBM Carbide Drill Bits Raise Boring Roller Cutter 12 1/2

Raise boring roller cutter General application, Blind boring, Horizontal boring, Reverse circulating drilling, connection shafts for mining, drill tunnels for cables.DrillMore's hoisting boring cutters and roller cutters are designed using the latest technology and advanced manufacturing processes and can be designed and machined to customer requirements.

Application: Ore mining, Bridges, Highways, Railroads

Production Process：Forging

Customized: Support customized

MOQ: 1 set

Get Price

description

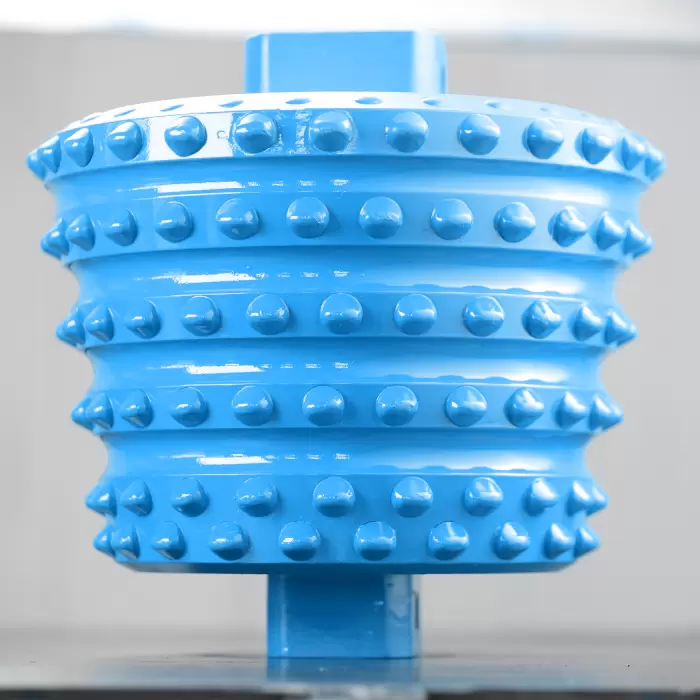

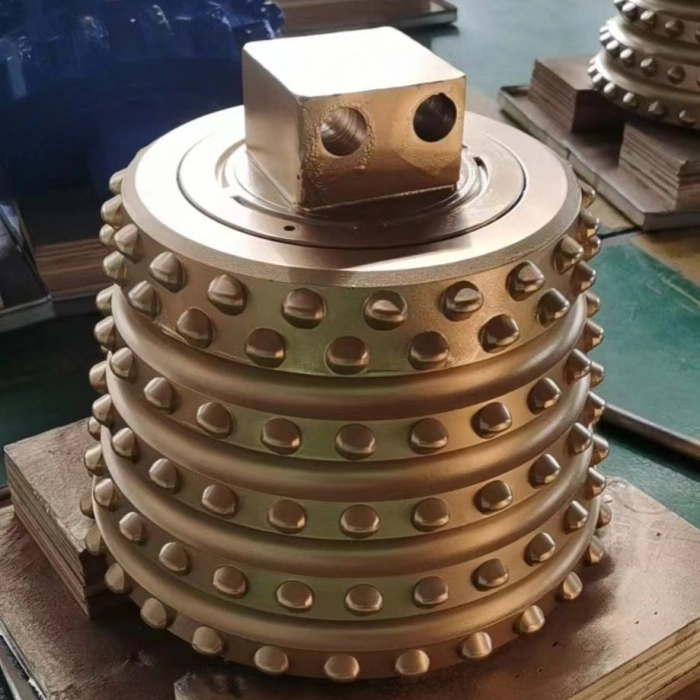

RBM Carbide Drill Bits Raise Boring Roller Cutter 12 1/2

Raise Bore Drilling is an extremely safe and economical method of drilling holes and is commonly used in mining operations to cut round holes between two levels of a mine without the use of explosives or to construct ventilation shafts, ore passages and sluices.

The 12 1/2'' Raise Bore Drilling Roller Cutter Bit is designed using the latest technology and advanced manufacturing processes to provide you with optimum performance.


Used Parameters	Model: VDM6	Diameter: 12 1/2''	Tooth Row: 6	Taper:20
Max line velocity: 90m/min
Suitable Rock Hardness: 14≤f≤18
Max withstand drilling pressure: 198KN
Recommended cutter head rotating speed: 3~15RPM
Recommended single cutter drilling pressure: 100KN~170KN

What are the advantages of DrillMore's Raise Boring Cutter?

1.Carbide Drill Bits Raise Boring Cutter, It provinces a max rotary efficiency of tunneling.The good lubricating ability and seal make the cutter can be used in underwater.

2.It is extremely cost-effective and has a longer lifespan than ordinary products.

3.The use of tungsten carbide drill bits Backhole drilling cutter ensures the maximum rotary efficiency of tunnel boring.

4.DrillMore can also customize products to meet different customer requirements and applications.

DrillMore's Best Service:

1.365x24 Year-round Service,We are committed to year-round 24-hour service even during holidays.

2. Provide professional technical services, including products introduction, selecting and problem solution etc.

3. Large inventory of regular types, customized types can be delivered within 30 days.

How to order?

Cutter Dimension +Mount Design

As well as collect the following information if possible:

1, Raise Boring Machine Information;

2, rock formation condition;

3, roller cutters performance statistics. 12 1/4'' Raise Boring Roller Cutter Drilling Bits
