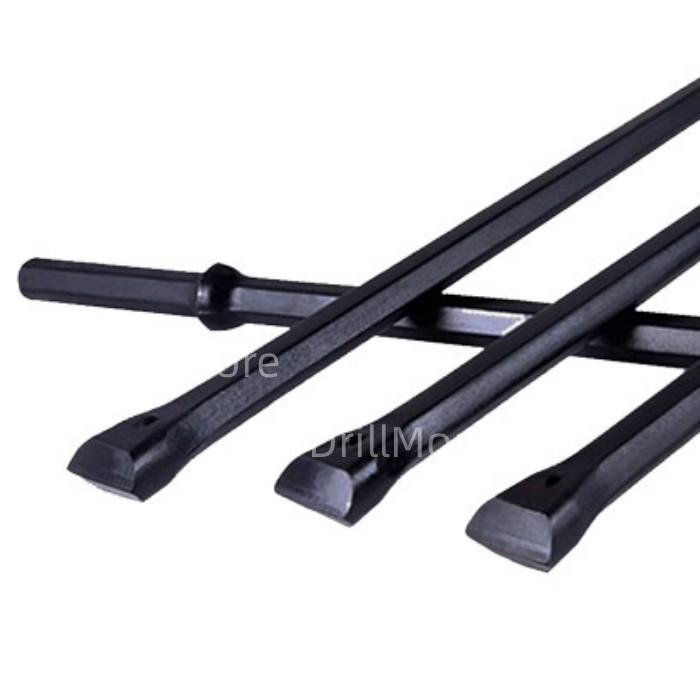

Integral Drill Rod is used by a hand-held drill machine in underground mining for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc, used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other constructions.

The quality of a steel material and a tungsten carbide is very important to get good drilling performance of a Integral Drill Rod.

DrillMore provide high quality Integral Drill Rod which can reduces the expense of impact energy, improves the drilling speed and efficiency, mainly used for drilling bore hole diameter from 28mm to 41mm.

According to different application, different lengths are available from 400mm to 4800mm usually.

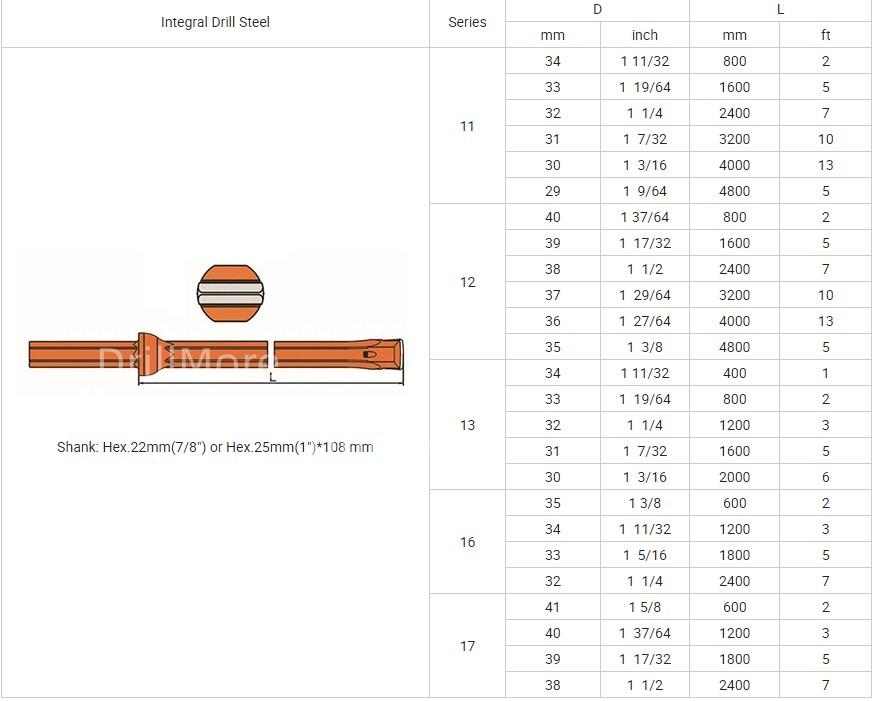

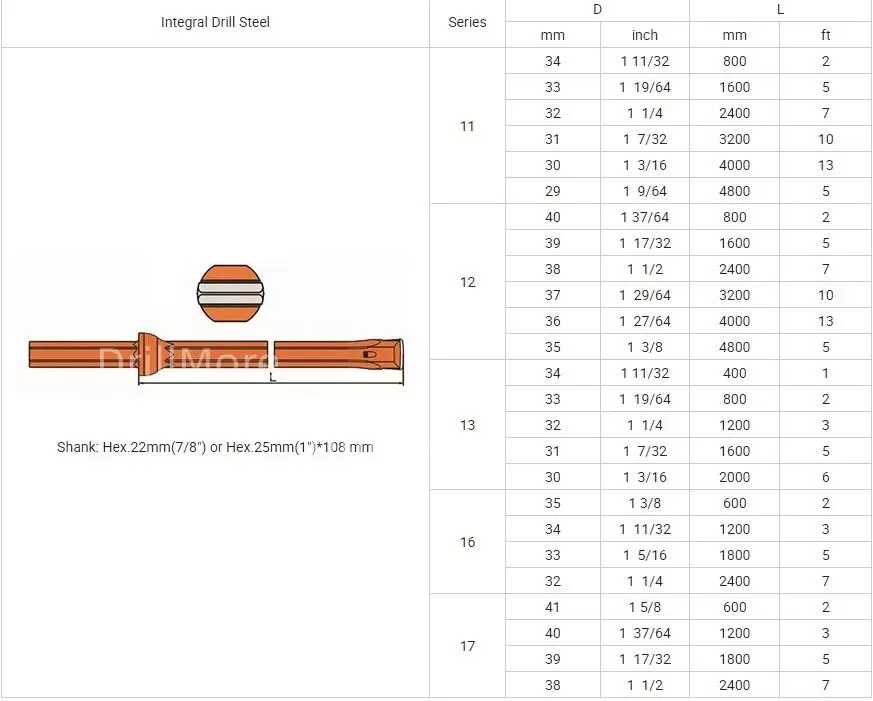

Integral Drill Rods Specification:

1. Head diameter: 28mm to 41mm

2. Shank size: hex19/hex22/he x 25*108mm/159mm

3. Length: 400mm to 4800mm

DrillMore Rock Tools

DrillMore is dedicated to the success of our customers by suppling drilling bits to each application. We offers our customers in the drilling industry many options, if you do not find the bit you are looking for please contact our sales team at following to find the correct bit for your application.
