Top Hammer Drill Bit

Top Hammer Tools

R25 Top Hammers Drill Bits High Performance

Drillmore rock drilling tools for the best quality and durability for your drilling. Our threaded range of drills includes R25 button bit, R32 button bit, R38 button bit, T38 button bit, T45 button bit, T51 button bit, ST58 button bit, GT60 Sandvik model button bit, ST68 button bit, EL60 button bit. These devices are subject to strict quality control to ensure excellent performance in all geolog

Applications: Mining, quarries, road construction, tunnelling

Customised design: Customisation accepted

Packing: Wooden box

Brand: Drill More

Get Price

description

R25 Top Hammers Drill Bits High Performance

Diameter

No x Buttons diameter,mm

Button angle°

Flushing holes

Weight(Kg)

inch

Gauge Buttons

Front Buttons

Side

Front

R25 (1”) BUTTON BIT-(Spherical buttons& Ballistic buttons)

33	1 5/16	5x7	2x7	35°	1	1	0.4
35	1 3/8	5x9	2x7	30°	1	1	0.5
38	1 1/2	5x9	2x7	30°	1	1	0.6
38	1 1/2	4x9	2x8	30°	2	1	0.5
41	1 5/8	5x9	2x8	35°	1	1	0.6
41	1 5/8	4x9	2x9	35°	2	1	0.6
45	1 3/4	5x11	2x8	30°	2	1	0.7
45	1 3/4	4x11	2x9	35°	2	1	0.6
48	1 7/8	5x11	2x9	35°	2	1	1.0

If you can't find the drill you're looking for, contact us!

DrillMore creates button bits just for you!

Difference between Threaded Joint Bits and Tapered Joint Bits

The main difference between threaded and taper hole drills lies in their connection and design.

Threaded Joint Bits:

Threaded drill bits are connected to drill pipe of the same standard pitch and angle by machining a thread with a specific pitch and angle on the top of the drill bit, which is often used in industrial manufacturing.

Advantages and areas of application:

Threaded joint drills are more suitable for applications where higher torque is required because they can withstand higher torque due to their tight connection.

Tapered Joint Bits:

Tapered holes are made by machining a tapered hole in the shank of the drill bit, generally with a Morse taper, and connecting it to a drill pipe that also has a Morse taper.

Advantages and areas of application:

Tapered joint drills are more convenient where frequent bit changes are required due to their simple construction and ease of disassembly and replacement.

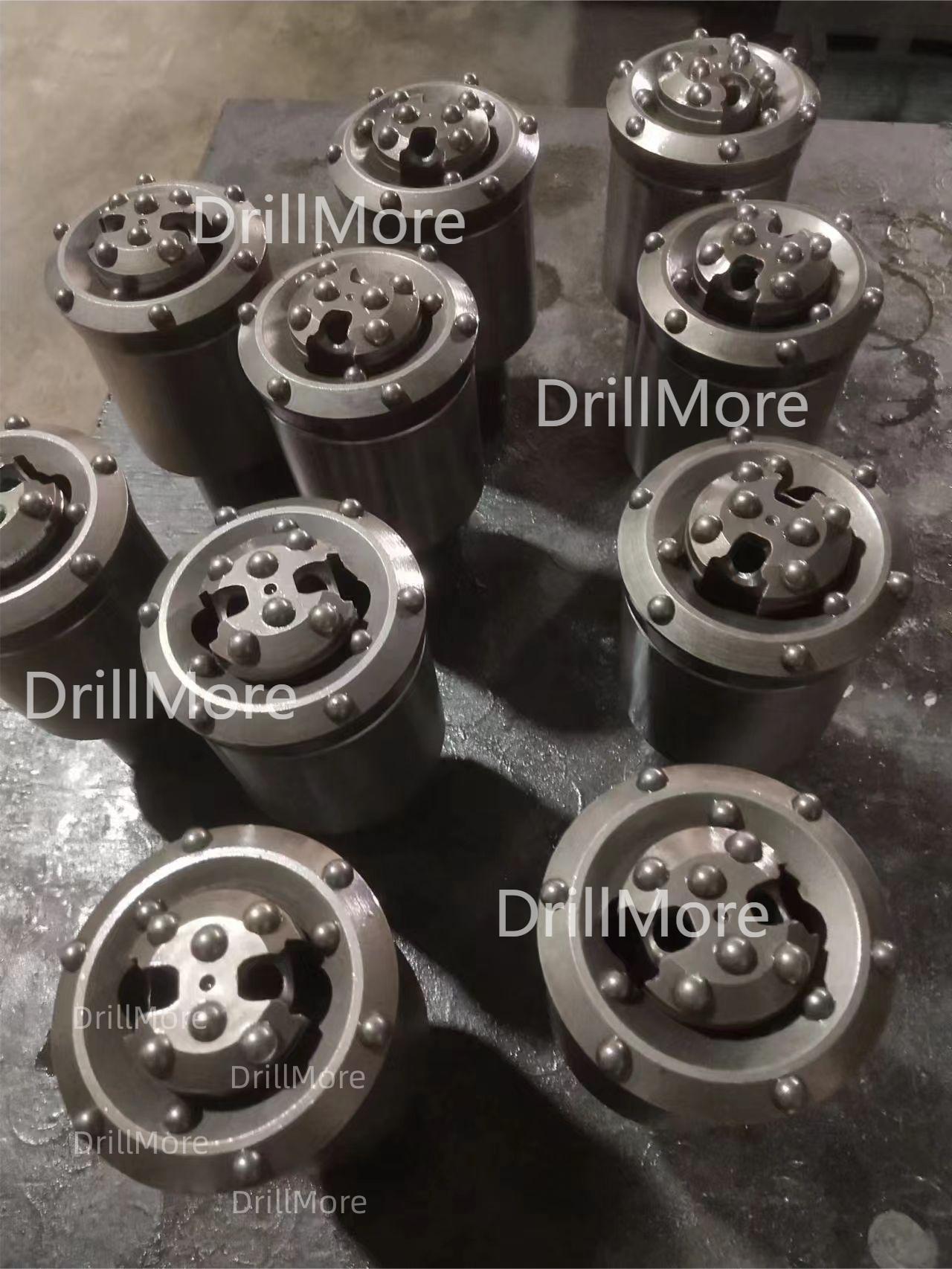

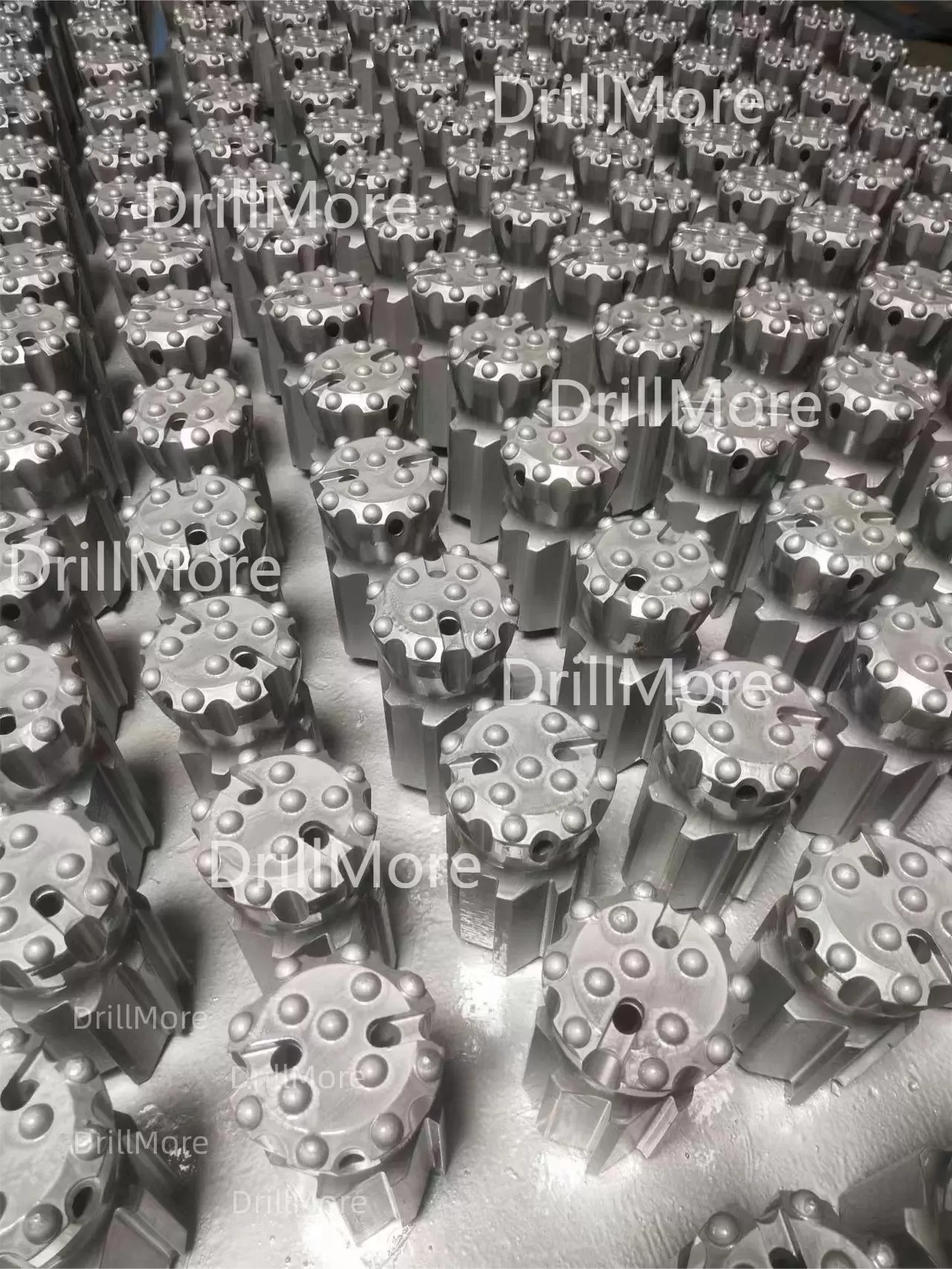

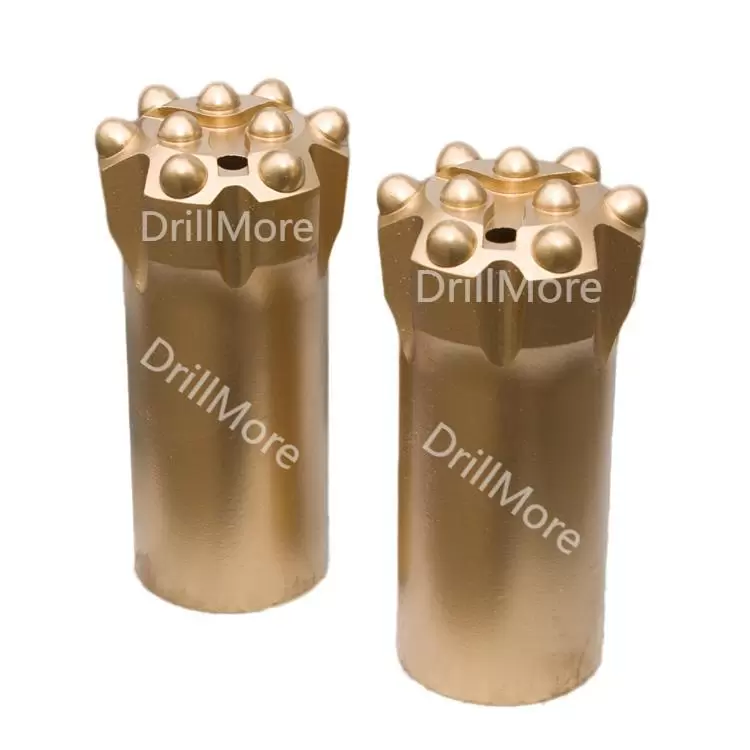

Some product pictures:

R25 Top Hammers Drill Bits High Performance

DrillMore is your most trusted partner!

DrillMore Rock Tools

DrillMore is dedicated to the success of our customers by suppling drilling bits to each application. We offers our customers in the drilling industry many options, if you do not find the bit you are looking for please contact our sales team at following to find the correct bit for your application.
