Mining Blasthole Drilling Tricone Bits 251mm IADC435
Tricone Bit For Mining
  • Mining Blasthole Drilling Tricone Bits 251mm IADC435
Mining Blasthole Drilling Tricone Bits 251mm IADC435
Tricone Bit is the best all-purpose drill bit and can be used for many different types of rock formations, such as Soft Rock Formations (consist mainly of sand, clay, limestone or shale), Medium Rock Formations (calcites, dolomites, hard limestones, and some hard shale), Hard and Abrasive Formation (hard shale, calcites, mudstones, chert, pyrite, granite, quartzite, and cherty lime stones).

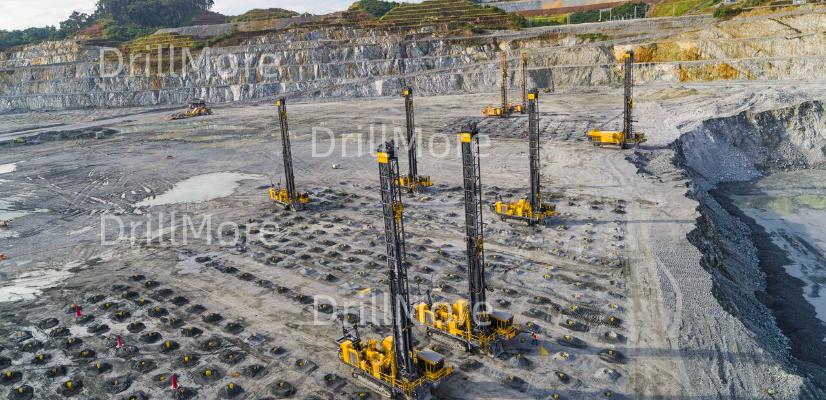

Application: Mining, Blasthole Drilling, Open Pit Mines
Package: Wood Carton
Brand: DrillMore
MOQ: 1 set
description

Mining Blasthole Drilling Tricone Bits 251mm IADC435

undefined

Tricone Bit is the best all-purpose drill bit and can be used for many different types of rock formations, such as Soft Rock Formations (consist mainly of sand, clay, limestone or shale), Medium Rock Formations (calcites, dolomites, hard limestones, and some hard shale), Hard and Abrasive Formation (hard shale, calcites, mudstones, chert, pyrite, granite, quartzite, and cherty lime stones).

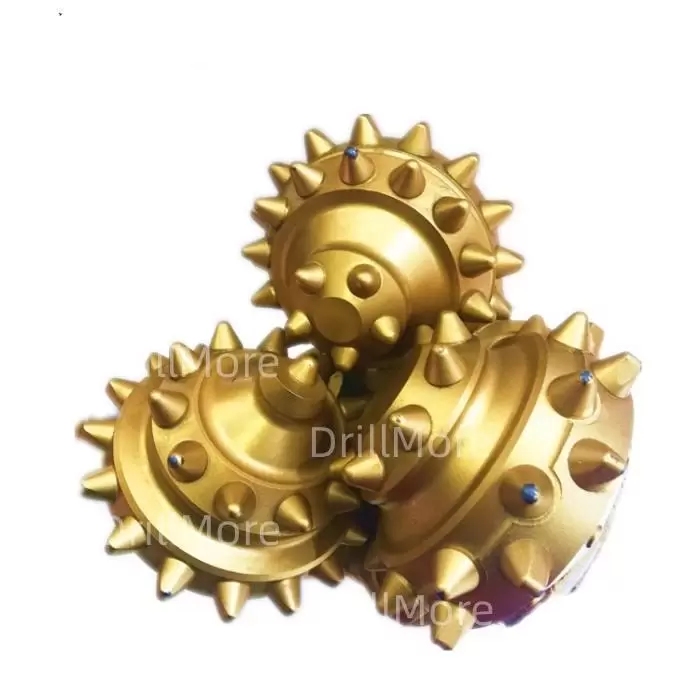

PRODUCT TYPE:Mining Blasthole Drilling Tricone Bits 250mm 9 7/8 Inch IADC435
CUTTING STRUCTURE:

Gauge rows are chisel type and inner rows are conical type.

Designed  for very soft formation with low compressive strengths and high drillability such as shale, soft limestone, sandstone, conglomerate, soft dolomite and coalore.

Application: 6,000-9,000 PSI

SHIRTTAIL PROTECTION:

Hard metal on lug; Wear resistantcarbide on shirttail lip and lug.

PRODUCT SPECIFICATION:

IADC Code: 435

Bearing Type:Roller-Ball-Roller-Thrust Button/Sealed bearing

Circulation Type: JetAir

Pin Connection: 6 5/8" API

Bit Diameter: 251 mm (9 7/8)

Product Weight: 65KG (143Lbs)

OPERATING SUGGESTIONS:

Weight on Bit: 9880-39500 Lbs

Rotary Speed: 120-90 RPM

Air Back Pressure:0.2-0.4 Mpa

Main Products DrillMore Provide

We mainly provide Tricone Bits(TCI Drill Bits) for open pit mining.

a). Type: Tungsten Carbide Insert (TCI)

b). Formation Application: Soft to Hard Formation

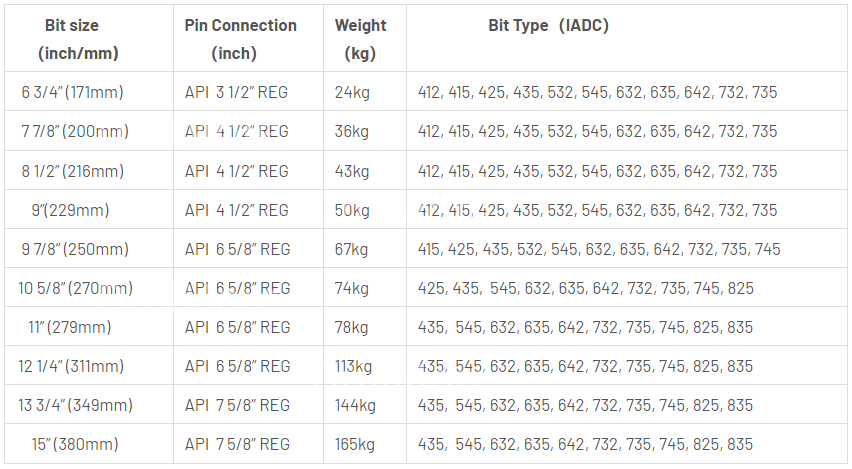

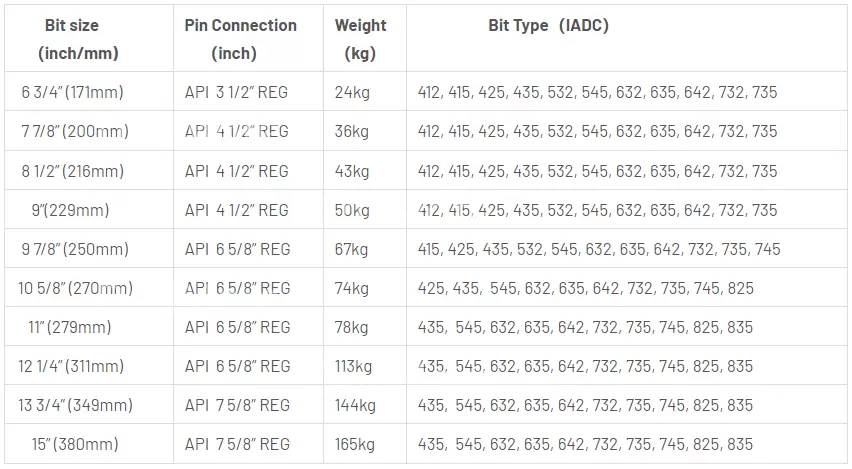

c). Size Available:  6 3/4", 7 7/8", 8 1/2", 9", 9 7/8", 10 5/8", 11", 12 1/4", 14 3/4"...

d). Popular IADC Code: IADC435,545,645,725,735,745,825,835

undefined

How to Order?

1. Size of the bit diameter.

2. It is better if you can send the photo of the bits you are using.

3. IADC code you require, if no IADC code, then tell us the hardness of the formation.



DrillMore Rock Tools

DrillMore is dedicated to the success of our customers by suppling drilling bits to each application. We offers our customers in the drilling industry many options, if you do not find the bit you are looking for please contact our sales team at following to find the correct bit for your application.

Head Office: XINHUAXI ROAD 999, LUSONG DISTRICT, ZHUZHOU HUNAN CHINA

Telephone: +86 199 7332 5015

WhatsApp: https://wa.me/8619973325015

Email: [email protected]

Call us now!
We are here to help.
