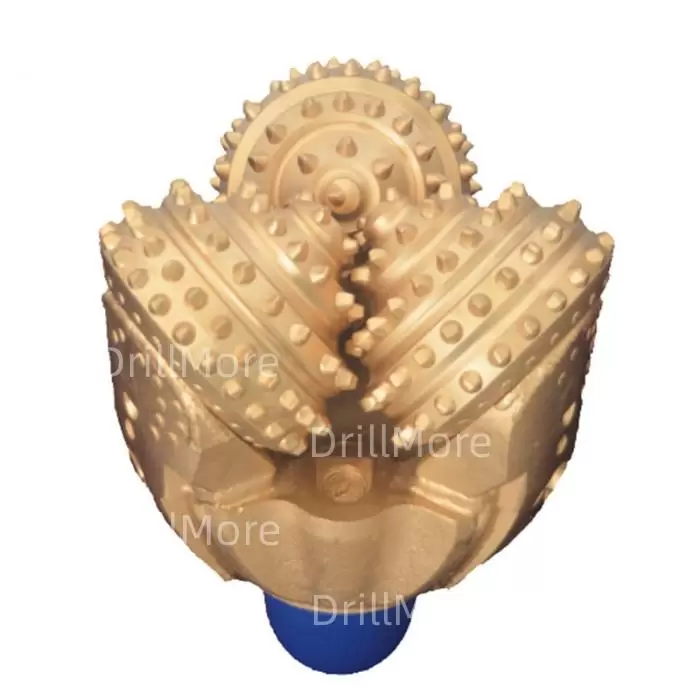

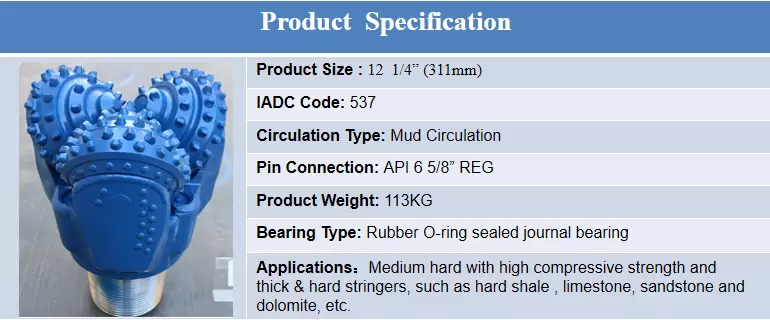

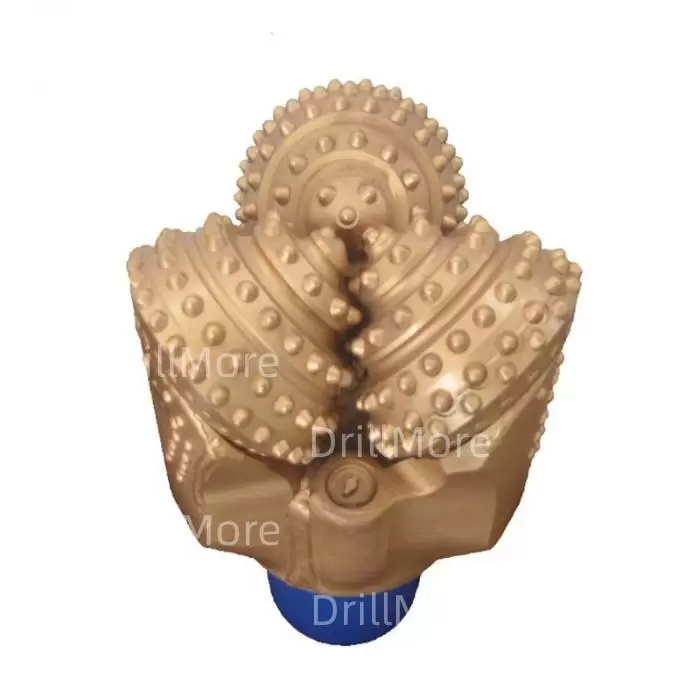

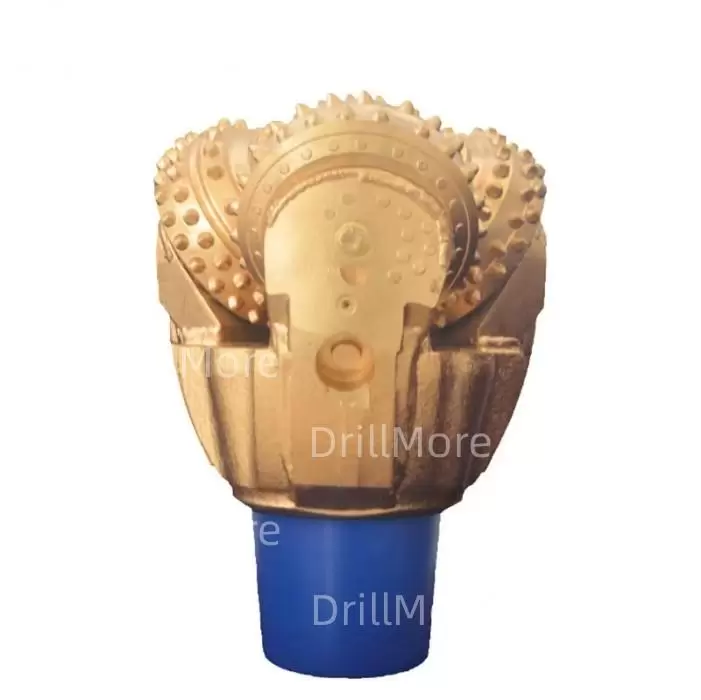

Borehole Tricone Bit 12 1/4 Inch IADC537 For Water Well Drilling
What is well drilling Tricone Bit?
Well drilling tricone bit using the mud to remove unwanted cuttings that form at the bottom of the well and to cool down the drill bit.
Mill tooth tricone bits are used in soft rock formations. The protruding teeth are widely spaced to prevent getting clogged with material as they cut through the surface material.
Tungsten carbide insert (TCI) tricone bits are used for medium and hard rock formations. These bits are designed with smaller teeth, which are more closely arranged together. Drill speeds are higher when the rock face is harder and TCI can withstand the heat generated from these conditions. Mud is pumped down the drill string and out through the tricone bit to keep the bit clean from cuttings and to move these cuttings back to the surface.
What well drilling tricone bits can we provide?
DrillMore provide Mill Tooth Tricone Bits and Tungsten Carbide Insert (TCI) Tricone Bits for Well Drilling, Borehole Drilling, Oil/Gas Drilling, Construction... Big quantities of tricone bit in stock(click here), diameters various from 98.4mm to 660mm (3 7/8 to 26 inches), both mill teeth and TCI series are available.
How to choose the right tricone bits for your drilling industrial?
The lADC Code can describes a tricone bit, it tells you what the bit is steel tooth or TCI. What formations the bit is meant for, and the bearing type.These codes help you describe what type of tricone you are looking for.
lf you would like to learn more about lADC codes (click here)!
Now you can choose the tricone bit type by IADC code.
| WOB | RPM |
|
| (KN/mm) | (r/min) | ||
| 111/114/115 | 0.3-0.75 | 200-80 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk |
| 116/117 | 0.35-0.8 | 150-80 | |
| 121 | 0.3-0.85 | 200-80 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 124/125 | 0.3-0.85 | 180-60 | |
| 131 | 0.3-0.95 | 180-80 | soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds |
| 136/137 | 0.35-1.0 | 120-60 | |
| 211/241 | 0.3-0.95 | 180-80 | medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds. |
| 216/217 | 0.4-1.0 | 100-60 | |
| 246/247 | 0.4-1.0 | 80-50 | medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite |
| 321 | 0.4-1.0 | 150-70 | medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble |
| 324 | 0.4-1.0 | 120-50 | |
| 437/447/435 | 0.35-0.9 | 240-70 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone |
| 517/527/515 | 0.35-1.0 | 220-60 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 537/547/535 | 0.45-1.0 | 220-50 | soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds |
| 617/615 | 0.45-1.1 | 200-50 | medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite |
| 637/635 | 0.5-1.1 | 180-40 | hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble |
| Note: Above limits of WOB and RPM should not be used simultaneously | |||
How to Order?
1. Size of the bit diameter.
2. It is better if you can send the photo of the bits you are using.
3. IADC code you require, if no IADC code, then tell us the hardness of the formation.
DrillMore Rock Tools
DrillMore is dedicated to the success of our customers by suppling drilling bits to each application. We offers our customers in the drilling industry many options, if you do not find the bit you are looking for please contact our sales team at following to find the correct bit for your application.
