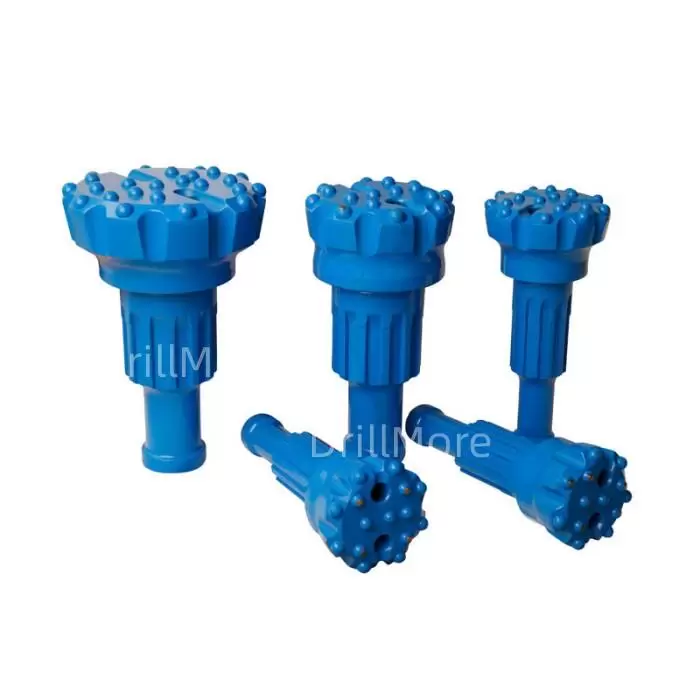

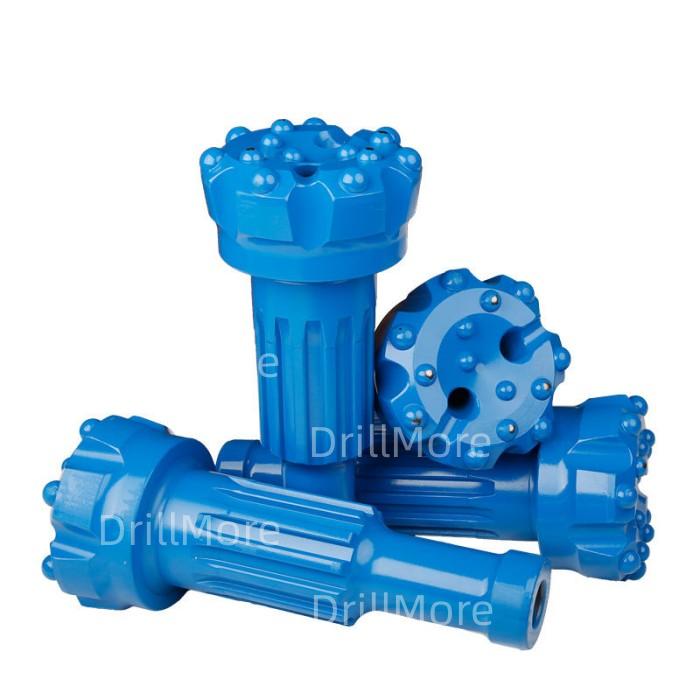

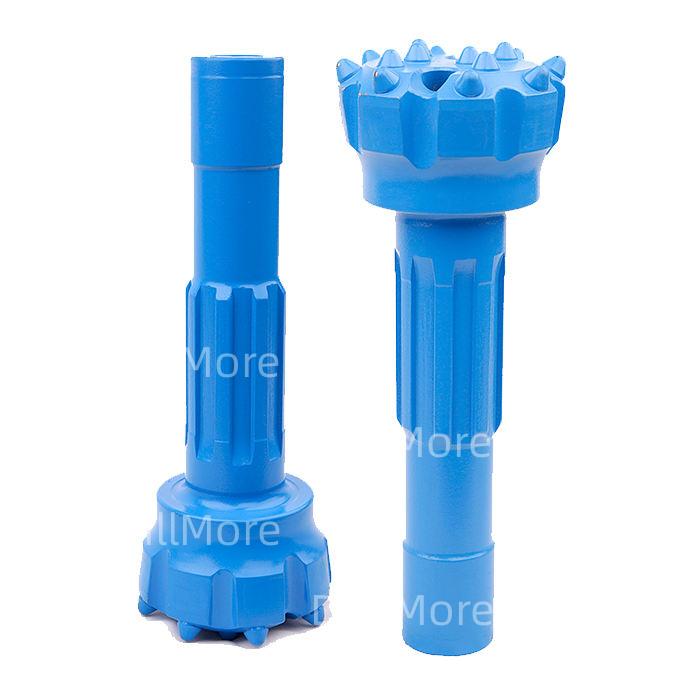

Down The Hole Bit DTH Drilling Bit
Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types.

Application: Mining, Construction, Quarry
Production Process:Forging
Package: Wood Carton
Brand: DrillMore
description

Down The Hole Bit DTH Drilling Bit

undefined

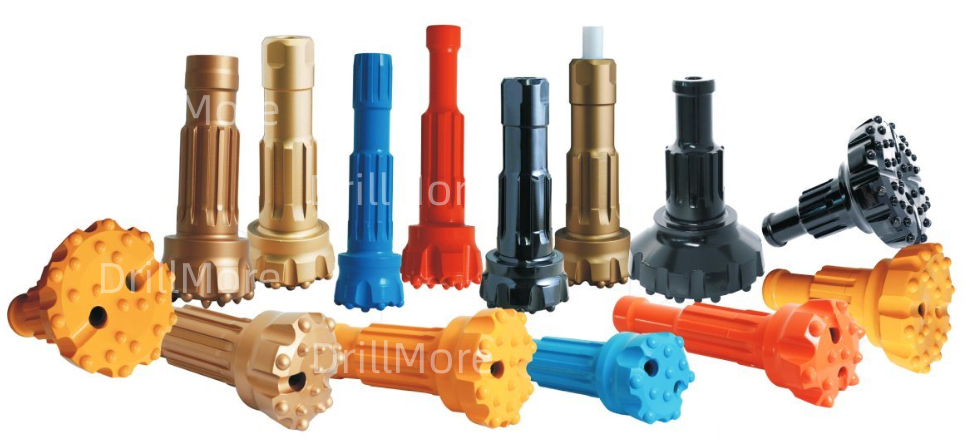

Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes. Our variety of Down the Hole (DTH) bits is manufactured using high quality materials to provide you with a fine balance between penetration capability and bit life. We offer a comprehensive range of standard and made to order drill bits on an extensive selection of shanks with a wide variety of head designs to suit every project.

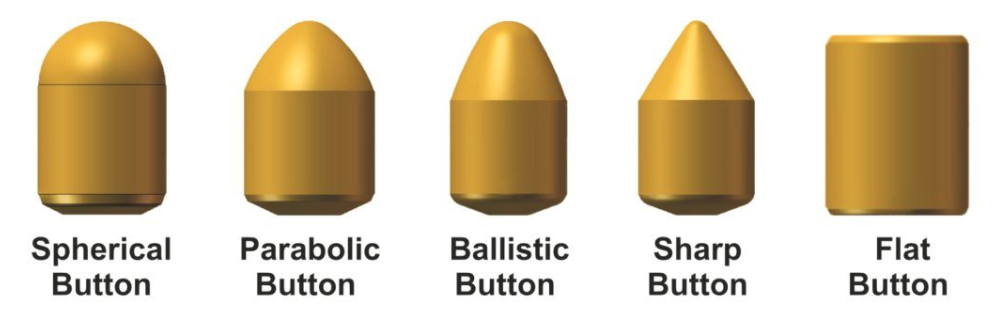

Available Option Teeth Shape
undefined

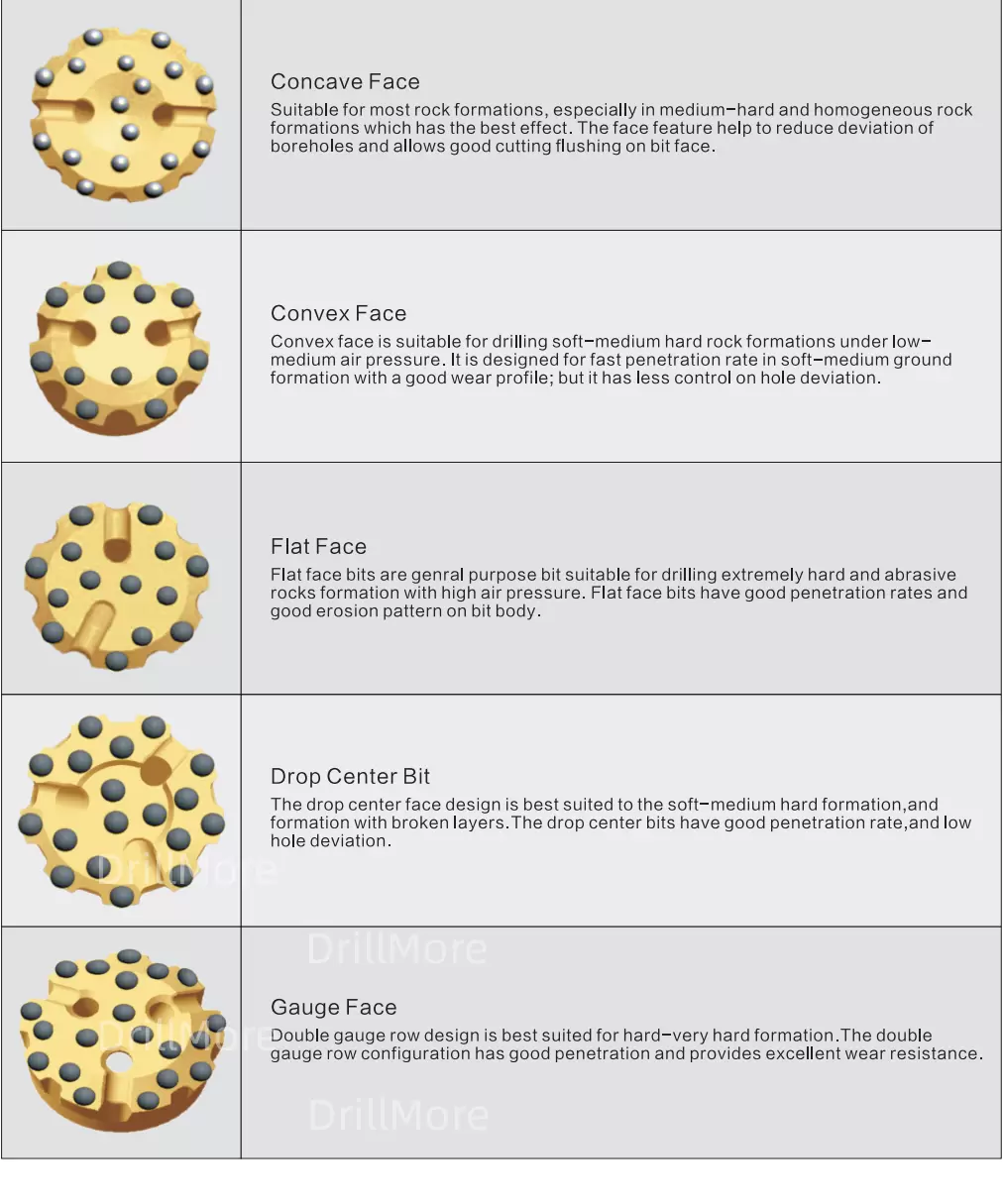

Available Option Face Shape
undefined

What DTH drill bit can DrillMore provide?

DrillMore supply DTH Drill Bits are available in a wide range of sizes and with a number of custom design features for optimum performance in a rock formation, which are designed to match all conceivable applications for water well industries, mining and construction.

Bit service life and penetration rate are the most important criteria in selecting the right bit for aparticular application.In most cases the focus is on productivity, so the bits of fast cuttings removal features are preferable to ensure the buttons are cutting clean, with the minimum of re-crushing.

DTH bit can subiect to severe stress from the striking piston as well as from the abrasive cuttings passing the bit at high velocity. When selecting the right bit for optimum performance, you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life.

Specification of DTH hammer button bits:

Diameter: (mm)

1-2 inch low air pressure DTH bits

Shank: BR1, BR2, DHD2.5


57/64/70/76/80/82/90

3 inch high Air pressure DHT bits

Shank: BR3,DHD3.5,COP34,COP32,QL30,M30,IR3.5


85 / 90 / 95 / 100 / 105/110

4 inch high Air pressure DHT bits

Shank:DHD340,COP44,M40,SD4,QL40


105 / 110 / 115 / 120 / 127/130

5 inch high Air pressure DHT bits

Shank:DHD350,COP54,M50,SD5,QL50


133 / 140 / 146 / 152 / 165

6 inch high Air pressure DHT bits

Shank:DHD360,M60,SD6,QL60,COP64


152 / 165 / 178 / 190 / 203

8 inch high Air pressure DHT bits

Shank:DHD380,COP84,M80,SD8,QL80


195 / 203 / 216 / 254 / 305

10 inch high Air pressure DTH bits

Shank:SD10, NUMA100


254/270/279/295/305

12 inch high Air pressure DTH bits

Shank:SD12,DHD1120,NUMA120,NUMA125


305/330/343/356/368/381

14 inch high Air pressure DTH bits

Shank:DRILLMORE 145


381~470

18 inch high Air pressure DTH bits

Shank: DRILLMORE 185


445~660

20 inch high Air pressure DTH bits

Shank: DRILLMORE 205


495~711

24 inch high Air pressure DTH bits

Shank: DRILLMORE 245


711~990

32 inch high Air pressure DTH bits

Shank: DRILLMORE 325


720~1118

All the models can be designed according to your requests!

How to place an order?

  1. Bit diameter.

  2. Shank type.

  3. Face shape and teeth shape.
