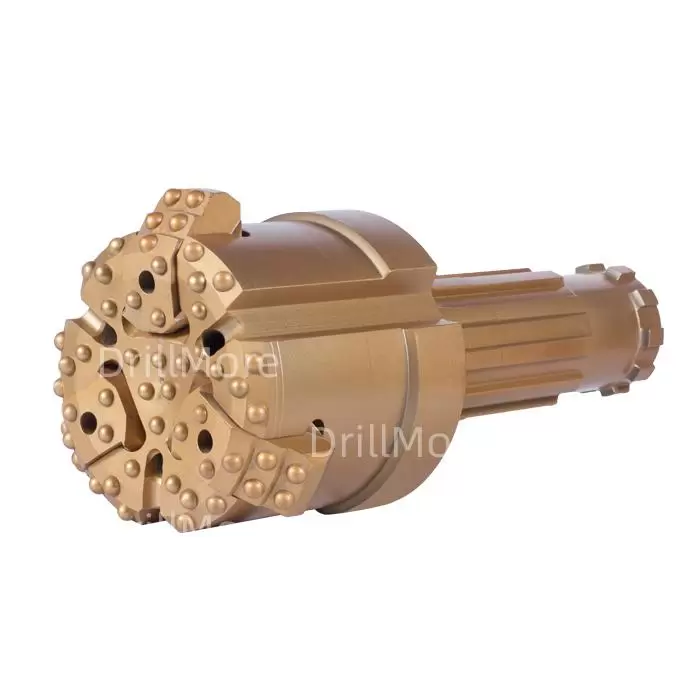

Symmetric Casing System With Slide Blocks
When drilling in unstable ground overburden. Drills the hole and drives the casing at the same time ensuring the hole does not collapse. Saves time as casing is run at the same time as the hole is drilled.

Application: Water Wells, Geothermal Wells, Short Mircopiles...
Package: Wood Carton
Brand: DrillMore
MOQ: 1 set
description

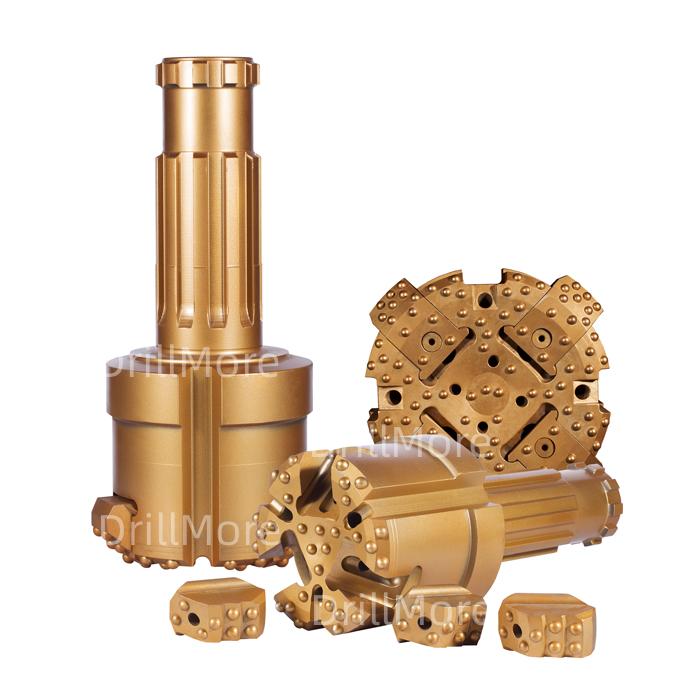

Symmetric Casing System With Slide Blocks

When drilling in unstable ground overburden. Drills the hole and drives the casing at the same time ensuring the hole does not collapse. Saves time as casing is run at the same time as the hole is drilled.

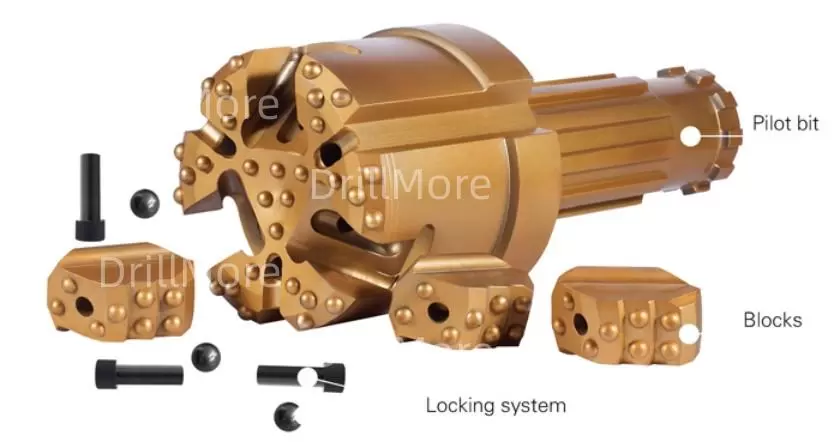

Slide Blocks Casing System Components: pilot bit, locking system, blocks.

undefined

Operation Procedure

1.when the drilling starts, the wings swing out by pressure from drilling string string ensure reaming with casing tube and drilling string move doen together.

2.when the required depth us reached, lift up drilling string reamer blocks in, and pull up reamer system through the casing tube.

3. Lifting up casing tubes and grouting in the botton of hole with some other cement material.

4. To continue drilling with conventional drilling tools in the bedrock.

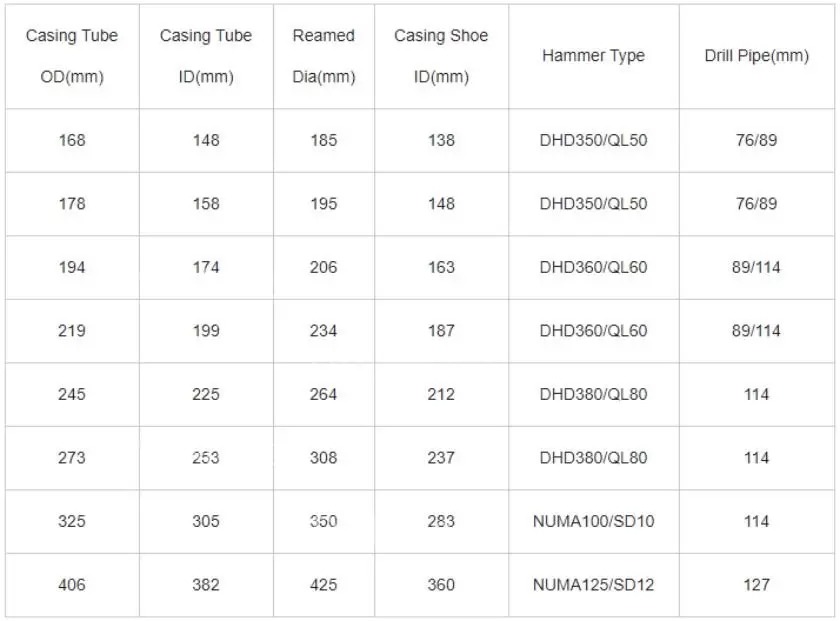

Following is regular model of DrillMore's Slide Blocks Casing System:

undefined

Advantages:

1. Nothing left in the holes.

2. No reverse rotation needed! Bit wings retract inside the casing eliminating unscrewing problems.

3. Faster penetration rates — large bit face area for transferring blow energy.

4. Rapid penetration/minimum drilling time — bit used at full operating pressure of hammer.

5. Simultaneously drill and case — wings extend further than OD when bit reaches bottom.

How to place order?

1. Out diameter and inner diameter.

2. Reamed diameter.

3. Inner diameter of casing shoe.

4. Hammer type.
